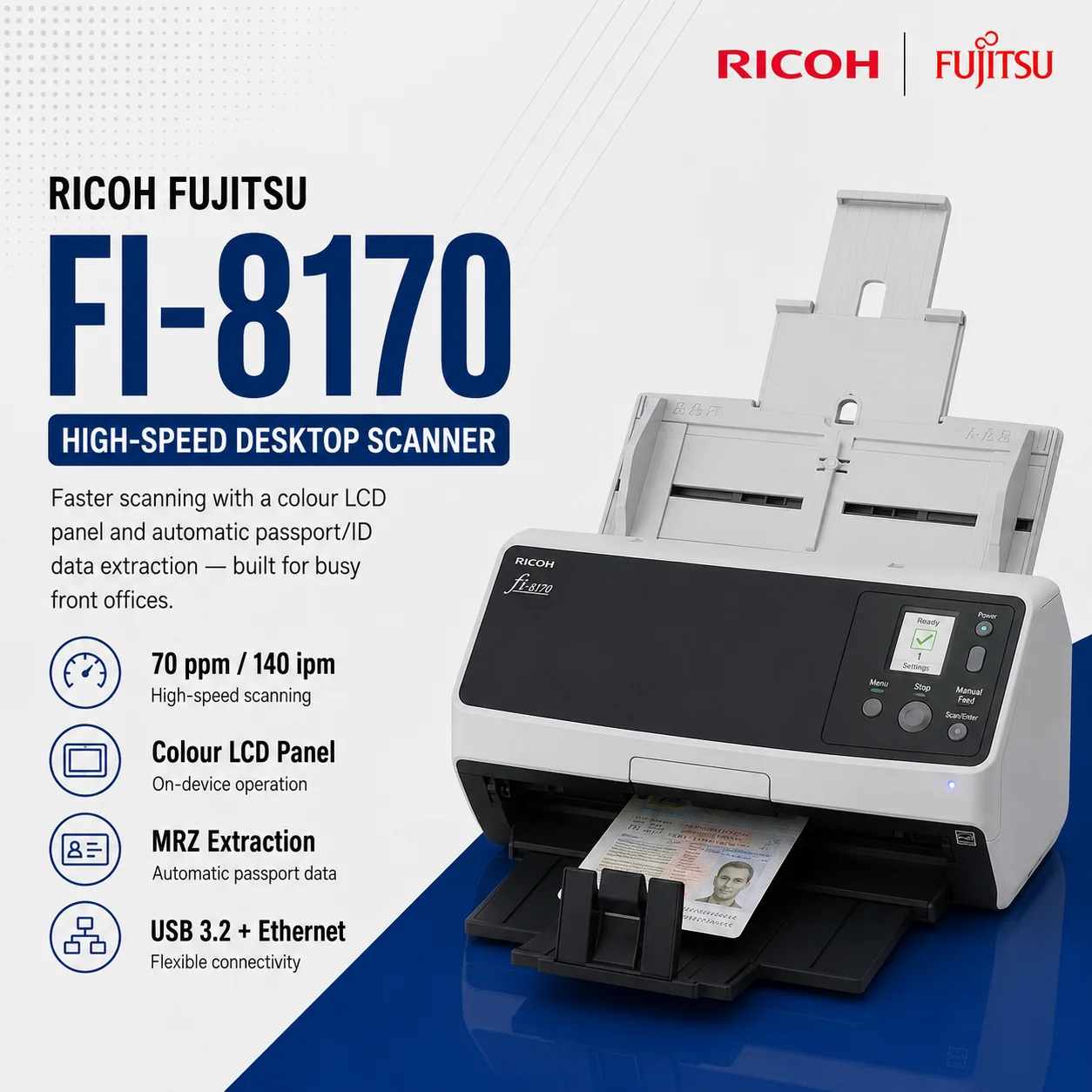

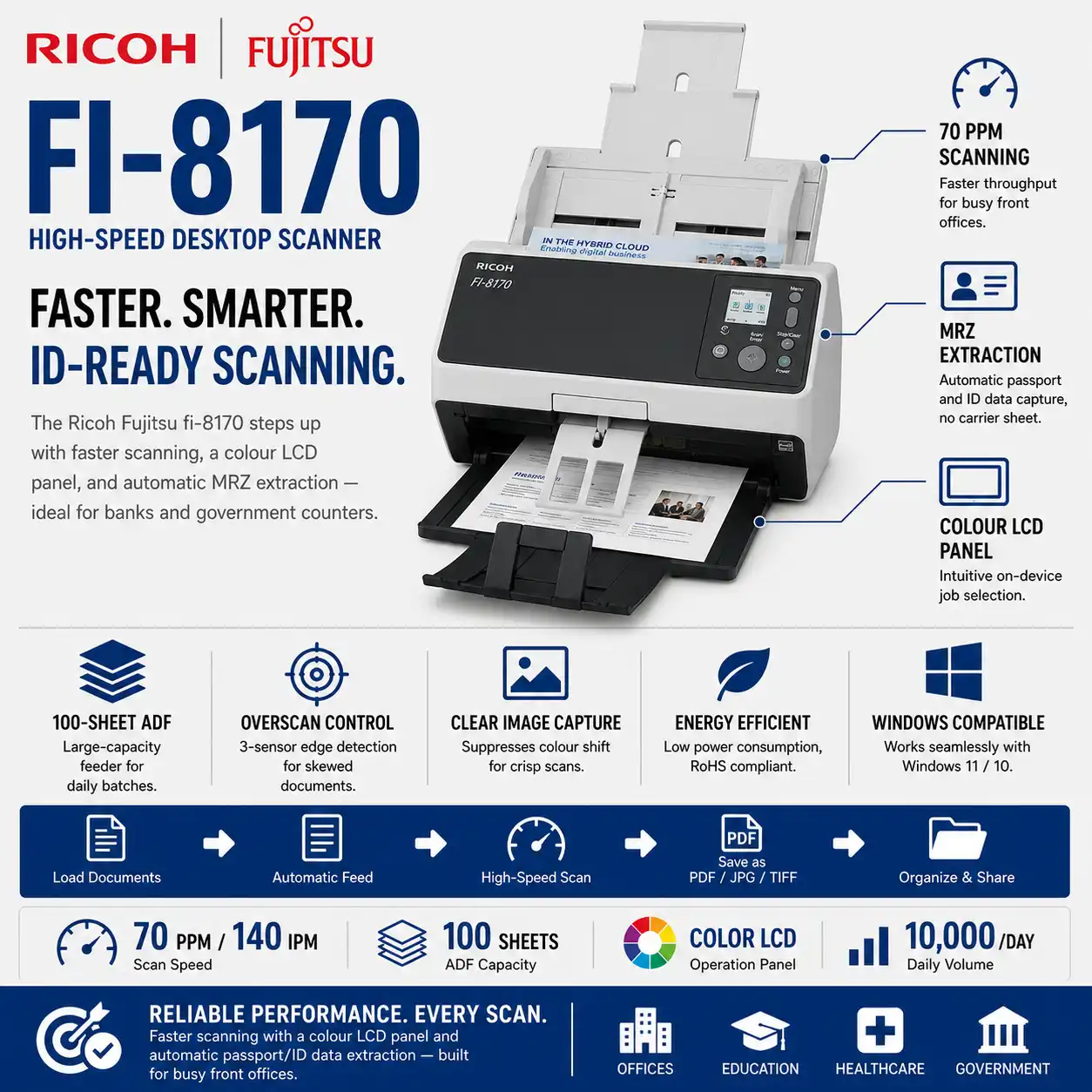

Ricoh fi-8170 High-Speed Desktop Document Scanner
Ricoh fi-8170 pengimbas dokumen pembekal Malaysia 理光文档扫描仪供应商马来西亚
70 pages per minute with a colour LCD panel, in a compact desktop body. Built for demanding front-office workflows in Malaysia that need speed and intelligent operation without a large-footprint production scanner.
The fi-8170 steps up from the fi-8150 with faster scanning, a colour LCD panel for on-device job selection, and MRZ extraction for passports and ID cards. Automatic Separation Control, Overscan Control, and Intelligent Sonic Paper Protection keep demanding, mixed-batch workflows moving without re-scans.
Fully supported in Malaysia by Office Machine with fast quotation response and corporate procurement assistance — the fi-8170 is built for front offices, government counters, and financial institutions that need reliable, high-speed identity and document capture.
High-Speed Desktop Document Scanner built for demanding front-office workflows requiring speed and intelligent operation.
Ricoh fi-8170 High-Speed Desktop Scanner
-
Evolved feeding, higher speed
The fi-8170 is built for demanding front-office environments, ensuring reliable, high-speed document capture without a large-footprint production scanner.- 70 ppm / 140 ipm duplex scanning at 200 and 300 dpi (A4 portrait, colour)
- Up to 10,000 sheets daily duty cycle
- 100-sheet automatic document feeder with enhanced exit stacker design
- Suitable for documents up to Legal size (215.9 x 355.6mm), plus long-page mode
-
Passport & ID scanning with MRZ extraction
The fi-8170 reads passports and booklets up to 7mm thick without needing a carrier sheet, and extracts MRZ data automatically for faster identity-verification workflows.- MRZ (Machine Readable Zone) extraction for name, document number, and nationality
- Manual Feed Mode reads copy forms, glued-on documents, and bi-folded A3 documents
- Scans plastic cards (flat and embossed) alongside paper documents without disabling multi-feed detection
-
Overscan Control & paper protection
Three sensors accurately detect the document edge and automatically increase the scanning area, capturing complete images even when documents are skewed — eliminating the need to re-scan. -
Colour LCD operation panel
A colour LCD panel on the front of the scanner lets operators intuitively switch modes, view notifications, and select jobs without needing to reference a PC screen. -
PFU Clear Image Capture
Combining a new CIS sensor with the GI image processing engine, Clear Image Capture suppresses colour shifts and delivers high-definition images for accurate data extraction, paired with PaperStream IP and PaperStream Capture software.
Specifications
- Item Name: fi-8170
- Scanner Type: ADF / Manual Feed, Duplex
- Scan Speed: 70 ppm / 140 ipm (A4 portrait, colour, 200/300 dpi)
- Optical Resolution: 600 dpi
- ADF Capacity: 100 Sheets
- Connectivity: USB 3.2 + Ethernet (LAN)
- Supported Document Sizes: Max 215.9 x 355.6 mm (8.5 x 14 in.), Min 48 x 50 mm, Long Document mode up to 6,096 mm
- Software Included: PaperStream IP, PaperStream Capture (PaperStream Capture Pro/Pro Premium optional)
- Product Dimensions (mm): 300 × 170 × 163 mm
- Product Net Weight: 4kg
- Warranty: 1 Year (confirm with local distributor)
Product Video
Brochure
Applications of Ricoh fi-8170 in Malaysia
The Ricoh fi-8170 is designed for front offices, government counters, and financial institutions across Malaysia that need fast, reliable identity and document capture.
Government & Identity Verification
- Passport and ID card scanning with MRZ data extraction
- Permit and licence application processing
- Civil registry document digitisation
- Public service counter document intake
Banking & Financial Services
- KYC identity verification with automated MRZ extraction
- Loan and account application processing
- Credit and debit card scanning alongside documents
- Compliance documentation for regulatory requirements
High-Volume Front Offices
- Reception counter scanning at higher daily volumes
- Passport and booklet scanning up to 7mm thick without carrier sheets
- Invoice and purchase order processing
- Networked scanning across front-office workgroups
Why Malaysian Businesses Choose Ricoh fi-8170
Government agencies, banks, and front offices across Kuala Lumpur, Selangor, Penang, Johor Bahru, and other major cities in Malaysia choose the Ricoh fi-8170 for its speed and identity-verification capabilities.
- Delivers 70 ppm / 140 ipm throughput rated for up to 10,000 sheets a day
- MRZ extraction automates passport and ID data entry for compliance workflows
- Reads passports and booklets up to 7mm thick without needing a carrier sheet
- Overscan Control with 3 sensors captures complete images even on skewed documents
- Colour LCD panel enables intuitive on-device operation without a connected PC screen
- USB 3.2 and Ethernet support both standalone and networked deployment
Key Features of Ricoh fi-8170
70 ppm / 140 ipm Speed
Processes 70 simplex pages or 140 duplex images per minute at 200/300 dpi — built for demanding front-office throughput.
MRZ Passport & ID Extraction
Automatically extracts name, document number, and nationality from passport and ID card Machine Readable Zones.
Colour LCD Panel
An on-device colour screen lets operators switch modes, view notifications, and select jobs without a PC.
Overscan Control
Three sensors detect document edges and expand the scan area automatically, capturing complete images even on skewed documents.
Passport & Booklet Scanning
Scans passports and booklets up to 7mm thick without a carrier sheet, ideal for identity verification workflows.
USB 3.2 + Ethernet
Dual connectivity supports standalone desktop use or networked deployment, including PC-less scanning via PaperStream NX Manager.
Ricoh fi-8170 Price in Malaysia
Single Unit Order
Suitable for single front-office counters or branches requiring one unit.
Bulk Office Purchase
Ideal for banks and government agencies equipping multiple front-office locations.
Large Quantity Orders
Suitable for organisation-wide rollouts across multiple branches or service counters.
Comparison Overview
| Feature | Ricoh fi-8170 | Generic Scanner | Manual Filing |
|---|---|---|---|
| Scan Speed | 70 ppm / 140 ipm | Slow | N/A |
| Image Quality | 600 dpi + MRZ extraction | Standard | N/A |
| Connectivity | USB 3.2 + Ethernet | USB Only | None |
| Software | PaperStream IP + Capture | Basic | None |
| Malaysia Supplier Support | Yes ✓ | Limited | No |
Frequently Asked Questions (FAQ)
What is the scanning speed of the Ricoh fi-8170?
The Ricoh fi-8170 scans at 70 pages per minute (simplex) and 140 images per minute (duplex) at 200 and 300 dpi, rated for up to 10,000 sheets a day in demanding front-office environments in Malaysia.
What is the difference between the fi-8170 and the fi-8150?
Both share the same compact chassis, but the fi-8170 scans faster at 70 ppm / 140 ipm versus the fi-8150’s 50 ppm / 100 ipm, supports a higher daily duty cycle of 10,000 sheets versus 8,000, and adds a colour LCD panel plus MRZ extraction for passport and ID scanning.
Can the fi-8170 extract data from passports automatically?
Yes, the fi-8170 supports MRZ (Machine Readable Zone) extraction, automatically capturing name, document number, and nationality from passports and ID cards for faster identity-verification workflows.
Does the fi-8170 need a carrier sheet to scan passports?
No, the fi-8170 can read passports and booklets up to 7mm thick directly, without requiring a carrier sheet — an improvement over the fi-8150, which requires a Booklet Carrier Sheet for the same task.
Is the Ricoh fi-8170 available in Malaysia with local support?
Yes, the Ricoh fi-8170 is available through Office Machine with ready stock, fast quotation response, and corporate procurement support for businesses and government departments across Malaysia.
Get the Ricoh fi-8170 Scanner in Malaysia
Looking for a high-speed desktop document scanner supplier in Malaysia? Contact Office Machine today for quotation, bulk purchase pricing, and delivery support for government agencies, banks, and organisations nationwide.
